Thread: 2.5 TDI Transporter BPC 2009 info thread

  1. #11
    Join Date
    Jan 2008
    Location
    Sunshine Coast
    Posts
    3,933
    Users Country Flag Thread Starter

    Well after doing a LOT of priming, the engine started right up and ran fine, I ran it at 2000 rpm or so for 20mins and it didn't miss a beat. Sure is a tractor of an engine, sounds quite agricultural! Priming the lines was a mission, and I noted the fuel tank pickup pump only runs for a split second each key turn, so you really do need to turn it a lot of times to get an empty line to prime. I used a syringe to fill the lines and filter as best I could, and even then it took like 20 key turns to get it to start! Expect priming to be a challenge when messing with anything fuel related. EDIT You can do this with VCDS - Engine, basic settings, group 035, press on/off button to run lifter pump for 30 second intervals.

    I had a few minor coolant leaks to fix, problem when using the old rubber hoses that often split when removing them, had to trim them down to get new rubber to clamp. I'll replace the lot if ever I reco the engine internals.

    Something to note, the gates tool set I received has the unicorn long t10 triple square tool you need for that one PITA turbo bolt, so no need to get one individually if you ever get the Gates SX400 set.

    I also had one small oil leak from the turbo feed, so decided to take it back off and try again. The turbo does indeed come off easily once you install new exhaust studs, and the studs tend to screw back out as you undo the exhaust manifold nuts, and this allows you to remove the manifold straight upwards, and the turbo the same way, with the rear engine mount in place. Piece of cake compared to the first way with stuck exhaust studs!

    Another thing I noted it that there seemed to be no real errors that needed clearing via VCDS. This could be from getting the ECU tuned, where these are generally reset as part of the process - anything related to ECU removal that is - but I had read that unplugging the PD loom to the injectors stored errors that needed to be erased. Went looking but apart from a basic dash error from the ECU removal, there was nothing much at all from the rebuild. I was actually amazed there was no errors showing up on the dash on that first run!

    So RWC and rego next, then I'll report on how she drives. On a quick RWC preparation lights check, the low beams sure look dim!
    Last edited by Greg Roles; 27-03-2022 at 07:15 AM.
    2014 Skoda Yeti TDI Outdoor 4x4 | RD Technik ECU / DSG | Garrett GTC1549vz | Darkside dump pDPF | Wagner Comp IC | Water Meth | Bilstein B6 H&R springs | Rays Homura 2x7 18 x 8" 255 Michelin 4s | Golf R subframe | Lots of Octy VRS / GTI bits |
    2009 2.5 TDI T5 Transporter Crewie being brought back from near death....don't try this at home, ever....

  2. #12
    Join Date
    Jan 2008
    Location
    Sunshine Coast
    Posts
    3,933
    Users Country Flag Thread Starter
    Spoke too early about no VCDS errors, they popped up after a few small runs!

    Well some more developments, and a few more parts in the post from the UK. Turns out I have at least one injector down, if not two. Would seem the "tractor" feel my van has, and it's lack of performance is because one or more cylinders isn't doing much. I tried a "diesel purge" you read about online with the Liquimoly can of cleaner you circulate through the fuel rail, and had surprising results, at first I had cylinder one injector maxing out at the +2.99 mg/stroke trim, and after purge, had #4 trim right out as well!

    Very odd, but to be fair I was seeing "multiple misfires error" in that first reading, and the trims sure move around a lot from cold to warmup, but it seems once an injector exceeds the 2.99 max positive trim the car freaks out, and it's time to replace or rebuild them, after investigating other possible problems with that particular cylinder starting with compression!

    In the below screen shot, Left side was pre purge, right side after ( to be fair measured while running ON diesel purge ) but levels remained the same on normal fuel afterwards. Car probably needs a bit of a drive to relearn injector trim properly, but I bit the bullet and got two used but tested injectors out of Darkside, I obviously need at least one.

    2.5 TDI Transporter BPC 2009 info thread-van-change-jpg

    Took me a while to understand all this, but basically positive is bad, as the car is holding the injector open longer to account for a perceived problem in that cylinder, and that can be compression, valve leak, injector, cam issues, you name it. Injector seal and even injector fuel supply / drain can be the issue, and in my T5 they have to be set at a very specific angle, no doubt to get the fuel supply / return ports to line up to the tiny holes in the injector body. Seems anything up to about +1 is normal build variation, and after about 2 you are looking at trouble pretty soon. At +2.99 you get misfire errors.

    EDIT: On reflection, I think my WHOLE problem was the injector bore wear and consequent fuel pressure leak, and the probably FINE injectors were maxing out trying to provide adequate fuel. Before you go down the road of buying new injectors, pull them out and have a real good look for injector bore wear in the head, tons of pics coming up below. I feel I wasted $2k plus on recon injectors, when I should have just got a new head first given the bore wear I eventually found. When I wrote this I was super worried about the angle of rotation of the injectors, which does matter, but nothing compared to any fuel leaks from head wear! If the fuel supply pressure to the injectors is low, then how can it function as it should? end EDIT.

    The negative values are just the other cylinders being held back in injection to try and smooth the engine out, so those injectors are FINE, and the car is forever trying to make all injectors add up to a zero total ( apparently ). You can see in my odd second post purge result more -3.01 injectors trying to account for the extra +2.99 one. I realise the total now isn't zero, but again the ECU runs negative to try and get even idle, and my car sure shakes a lot. I'd not worry so much about "zero" and a lot more about any injector over +2 mg/stroke. Car still runs and not much changed power wise, but I figure a new injector in #1 and #4 should get the old girl back on her feet. This is something to watch via VCDS/Vag Com under engine measuring blocks, channel 14 being the 5th cylinder.

    Tons and tons of posts online with all manner of conjecture, but basically a +2.99 is a maxed out injector, and it may not necessarily be the injector per say, so a compression test in any high reading positive cylinder would be a good idea, and despite my weird outcome, the fuel rail lines in a can of Liquimoly diesel purge plus ( or three cans like me, thankfully on special when I bought them ) can't hurt. Just beware the fuel sure heats up after a while, and the purge plus in my small container I had the fuel lines in was steaming by the time I got through two cans, so I stopped there!

    For the record whilst pondering this problem, I decided to check / tweak the problem injector fitment angles, and did get all excited when I measured #1 being different to the rest. Tweaked them to all the same as the "good" ones, and sadly zero change. It did however show me the seal was fine, which on a higher mile engine is a concern, especially how the stock holders make the injectors wear on the other side and even supposedly creates a burr on the head port the injector sits in. I couldn't notice anything, but people have talked about it so it's something to take into account as a possibility. T10210 is the wedge tool. EDIT: I was looking in the wrong place, my head did indeed have these "burrs", I was thinking it happened down at the nozzle hole, not up at the top of the body / bore junction! See post 15 below!!!

    2.5 TDI Transporter BPC 2009 info thread-t10210-jpg

    If your loom / injector connection is the issue you won't get a constant reading under channel 12/13, was again a possibility I considered, that I hadn't plugged in #1 properly. Sadly wasn't that simple!
    Last edited by Greg Roles; 03-03-2022 at 06:37 AM.
    2014 Skoda Yeti TDI Outdoor 4x4 | RD Technik ECU / DSG | Garrett GTC1549vz | Darkside dump pDPF | Wagner Comp IC | Water Meth | Bilstein B6 H&R springs | Rays Homura 2x7 18 x 8" 255 Michelin 4s | Golf R subframe | Lots of Octy VRS / GTI bits |
    2009 2.5 TDI T5 Transporter Crewie being brought back from near death....don't try this at home, ever....

  3. #13
    Join Date
    Jun 2012
    Location
    NSW
    Posts
    138
    Subscribed.
    Thanks for sharing info.

  4. #14
    Join Date
    May 2019
    Location
    South Coast,NSW
    Posts
    9
    Users Country Flag
    Thanks Greg, for in depth explanations. A great reference guide.

    I have a Ď09 2.5 6 speed manual (BPC motor).

    Currently on 159,000km, had it since 75,000km, hasnít missed a beat except for standard stuff like driveshaft, stub shaft, egr, water pump etc.

    Itís maintained by a guy who has a TDI background and I have been using liquimoly top tec 4200 engine oil with 10,000 interval changes using genuine oil filters.

    I need to consider doing the gates couplings, inlet manifold clean and a few other things soon so your info was really helpful.

    I normally spend hours researching and sourcing parts then my tdi guy does the rest as I donít really have any off road parking.

  5. #15
    Join Date
    Jan 2008
    Location
    Sunshine Coast
    Posts
    3,933
    Users Country Flag Thread Starter
    This van had better be a joy to drive in the end!!

    The latest.....well, the upside is I'm pretty much going to have a rock solid engine by the end of all this, the down side it the time and money all this has taken. For anyone reading this far who is considering a used 2.5 TDI, or even a used 5.0 V10 TDI ( two of these MF'ers side by side ), my honest advice is DON'T. So many god damn modes of failure, fine for a time once you've rebuilt it all, but I so wish I'd just gotten the lesser 1.9 PD or the T6 2.0 engine now, so much simpler, so much more info out there, and I would have saved a lot of time and money.

    Anyway to continue the story I ended up with all new ( rebuilt ) injectors, a new tandem fuel pump, and was still having misfires no matter how much I checked and rechecked things. I then gave up for about a week, and started watching random non-english videos until I came across a russian guy who had shimmed his injector bores to stop fuel getting down into the cylinders. He had turned up a bronze plug to account for the injector bore wear on his engine, and that got me to thinking. Can you shim / resleeve a worn PD injector bore? Probably, but so too some of the video I froze showed me the grooves worn into the bore hole opposite the injector holder, at about 3 o'clock. You young'uns may have to google that : ) I decided to pull my injectors for the eleventy millionth time, and low and behold my bores have these very same marks. No idea how I had missed this before, given how many times I've actually had the injectors in and out, but there you go. In my defence there are ring type marks meant to be there, and the wear marks from 2-4 o'clock that correspond to the flares that hold the two o-rings up on the injector body. Easy to overlook till you know what to look for! It's obvious fuel is still leaking around my new injectors via the wear marks in the head. My new injector bridge now holding them dead straight has probably opened the gap up a little more and made it even worse!

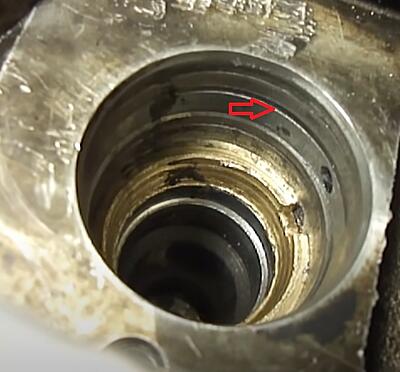

    First pic shows the bore wear marks in the russian video, second is his shim, third is bronze shim installed. Problem is that only covers the lower seal leak - fuel into the head, doesn't stop top seal loss - into the oil, and that would also drop the actual pressure getting to the injector, which will have to trim up and try to open more, and likely still max out and throw errors!

    2.5 TDI Transporter BPC 2009 info thread-inj1-jpg

    2.5 TDI Transporter BPC 2009 info thread-inj2-jpg

    2.5 TDI Transporter BPC 2009 info thread-inj3-jpg

    Further research and I decided to just accept my losses and get a new aftermarket head. Seems you can stop gap the problem with new seals and things to fill the wear holes for a while, but these all fail pretty quickly and you end up with fuel loss into the oil or into the head, and the injector is under-fuelled as a result. This all leads me to believe I probably didn't need to spend near $2k on rebuilt injectors, as it was obviously the head wear causing the misfire problem. Now the injector body itself can wear too, but as it is a much harder carbon steel, wearing into an alloy head, well it's the head bores that cop the damage.

    If you have a lower km engine, NOW is the time to fit the blue injector bridge I've shown at the start of this thread that holds the injectors from both sides, preventing this problem, GLAD I have one!!!!!

    SO, for anyone with misfire problems on random injectors, and a higher mile engine, I'd be puling the injectors and checking the injector bore holes in the head. My gut feel is the head is more likely to give out before the actual injectors do - for sure injectors can fail, but with rebuilt injectors costing more than an aftermarket AMC head out of the UK ( cost approx $1800 landed ), I'd be replacing the head and just doing a new seal kit on the old injectors rather than the other way around I just did!! EDIT: The AMC head is made in Spain, and is the head to get, there are China "FAI" heads for about $500 less, and these are probably OK, but it seems the genuine AMC from Spain is the way to go from what I've read. I used Lymm engine parts in the UK, Darkside was WAY too dear on this part ( near $3k for an AMC ).

    So thanks VW engineers for making an engine that has so many potential problems and design flaws, and one that has challenged me at every god damn step. Thankfully I won't be doing many kms in this van so once all sorted it should last me many years, but again for anyone using one of these for a lot of kms and if it's already done 200kms plus, well hope you've got a nice fund saved up for the repairs!
    I've done everything myself and already spent beyond what the van is likely worth, hate to have had to pay a mechanic for all this labour!!
    Last edited by Greg Roles; 28-01-2022 at 05:23 PM.
    2014 Skoda Yeti TDI Outdoor 4x4 | RD Technik ECU / DSG | Garrett GTC1549vz | Darkside dump pDPF | Wagner Comp IC | Water Meth | Bilstein B6 H&R springs | Rays Homura 2x7 18 x 8" 255 Michelin 4s | Golf R subframe | Lots of Octy VRS / GTI bits |
    2009 2.5 TDI T5 Transporter Crewie being brought back from near death....don't try this at home, ever....

  6. #16
    Join Date
    Jan 2008
    Location
    Sunshine Coast
    Posts
    3,933
    Users Country Flag Thread Starter
    FYI found two Russian you tube videos that showed up in my recommended feed where they are honing out and re-sleeving injector bores, using liquid nitrogen to shrink the sleeves before fitting.

    2.5 TDI Transporter BPC 2009 info thread-b-jpg
    2014 Skoda Yeti TDI Outdoor 4x4 | RD Technik ECU / DSG | Garrett GTC1549vz | Darkside dump pDPF | Wagner Comp IC | Water Meth | Bilstein B6 H&R springs | Rays Homura 2x7 18 x 8" 255 Michelin 4s | Golf R subframe | Lots of Octy VRS / GTI bits |
    2009 2.5 TDI T5 Transporter Crewie being brought back from near death....don't try this at home, ever....

  7. #17
    Join Date
    Jan 2008
    Location
    Sunshine Coast
    Posts
    3,933
    Users Country Flag Thread Starter
    There are also tons of Russian videos of re-sleeving T5 blocks, so despite some negative comments on various UK forums about doing this, it seems in Russia it's quite common. My bores are towards the end of life, with #2 and #3 having visible wear marks that you can *just* feel, but given my limited kms planned for this van, and the fact I'm over having it sit in a bijillion pieces in the shed, I'm gonna run with them as they are. Plasma is supposedly super low friction, and I'm just gonna run Lucas upper cylinder lube, Nulon PTFE in the oil, and swap the oil every 10 thou to prolong the bores as far as I can. Don't even want to think about a rebore right now, but when that time comes I'll probably just get a reco block, probably via Russia!

    2.5 TDI Transporter BPC 2009 info thread-rebore-jpg
    Last edited by Greg Roles; 29-01-2022 at 10:50 AM.
    2014 Skoda Yeti TDI Outdoor 4x4 | RD Technik ECU / DSG | Garrett GTC1549vz | Darkside dump pDPF | Wagner Comp IC | Water Meth | Bilstein B6 H&R springs | Rays Homura 2x7 18 x 8" 255 Michelin 4s | Golf R subframe | Lots of Octy VRS / GTI bits |
    2009 2.5 TDI T5 Transporter Crewie being brought back from near death....don't try this at home, ever....

  8. #18
    Join Date
    Feb 2022
    Location
    Melbourne
    Posts
    1
    Thanks for your breakdown so far, very informative. Im also looking to replace my cylinder head. Do you know if the AXE head will fit the BPC engine? Ive asked many parts suppliers and they said it will suit my vin number, so answer isnt definite.

  9. #19
    Join Date
    Jan 2008
    Location
    Sunshine Coast
    Posts
    3,933
    Users Country Flag Thread Starter
    Well all I can tell you is both the FAI China aftermarket head and the AMC heads ( pictured ) list both the AXE and BPC in their listings, so I'd say you've a good chance that it's all the same.

    2.5 TDI Transporter BPC 2009 info thread-head-jpg
    2014 Skoda Yeti TDI Outdoor 4x4 | RD Technik ECU / DSG | Garrett GTC1549vz | Darkside dump pDPF | Wagner Comp IC | Water Meth | Bilstein B6 H&R springs | Rays Homura 2x7 18 x 8" 255 Michelin 4s | Golf R subframe | Lots of Octy VRS / GTI bits |
    2009 2.5 TDI T5 Transporter Crewie being brought back from near death....don't try this at home, ever....

  10. #20
    Join Date
    Jan 2008
    Location
    Sunshine Coast
    Posts
    3,933
    Users Country Flag Thread Starter

    Put the new valves in the new head last night, and all my injectors etc have FINALLY arrived, been almost a two month wait on rebuilt injectors out of the UK. Planning a big weekend of engine building at long bloody last, I'm actually a bit excited.

    2.5 TDI Transporter BPC 2009 info thread-imag0675-jpg

    And... as is the way with the curse Germany put on the 2.5 TDI, I came across the link below today. A T5 remanufacture specialist in Latvia, I've easily spent more than they are asking for a rebuild. I'm sure freight would be up there, but I will get onto them for a remanufactured block and timing gear in time, so then I know the whole god damn engine is basically new. This will, of course, cause the auto gearbox to blow up cause Murphie's Law applies, but this I am ready for, and will simply go a manual conversion with billet stub axles.

    Then I might just go burn this van to the ground with a flamethrower for the insurance, still undecided....

    VWT5ENGINES.COM - REMANUFACTURED VW T5 2.5 TDI AXD, AXE, BNZ, BPC, BLJ ENGINES
    2014 Skoda Yeti TDI Outdoor 4x4 | RD Technik ECU / DSG | Garrett GTC1549vz | Darkside dump pDPF | Wagner Comp IC | Water Meth | Bilstein B6 H&R springs | Rays Homura 2x7 18 x 8" 255 Michelin 4s | Golf R subframe | Lots of Octy VRS / GTI bits |
    2009 2.5 TDI T5 Transporter Crewie being brought back from near death....don't try this at home, ever....
