    Custom Sub enclosure for MK7 GTI Boot - worklog

    Hi,

    Some time back I was on here discussing audio options and their were few decent options around for the MK7 that didn't force a lot of compromise.

    1. OEM choices suck.

    2. After market options were unreliable as VW uses about 9 manufacturers for audio and the specs seem quite loose (all use the same part numbers too so it's really pot luck).

    3. No low level outputs are available - only high level.

    I decided stage one of my upgrade would be the following:

    1. Improve front stage - clarity and dynamics
    2. Improved bass reinforcement.
    3. reduced vehicle interference.
    4. Have OEM operation and appearance.

    To that end I have:

    1. installed a Mosconi DSP and 4CH amp to the front splits, feeding a separate amp for my sub.
    2. treated door panels and the rear of the vehicle from the front seats back, to reduce exhaust drone, tyre noise and general road noise.
    3. Constructed a sub to fit in the rear spare tyre and space created where the boot floor is fitte4d in the 'upper' position.

    The outcome was achieved and I am very happy with the improvement in the quality of audio and vehicle noise. The speakers are a limiting factor now however I have not felt a need to spend more $ at this time. The DSP offset some of the harshness that irritated me and at my listening levels the real flaws are not exposed.

    The stock eq (if any) is ****e in this car.


    This is a worklog of my Custom enclosure. The original thread crashed while writing it so I'll add more as I go and answer questions.... just wanted to get some images in to show people you can have a full size 10" sub in place with full size spare and no loss of boot space (Boot floor in upper position).

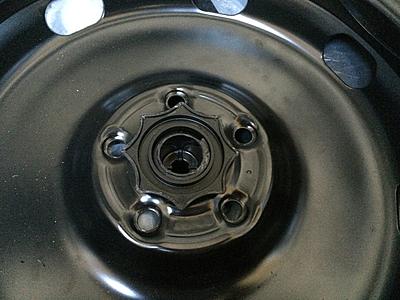

    1. tyre flipped over and cut lock nut down to minimum height.
    Custom Sub enclosure for MK7 GTI Boot - worklog-396-jpg

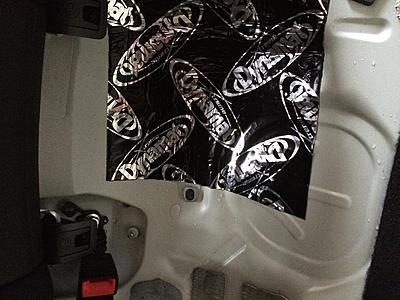

    2. Rear of car from front seats back and internals of doors treated with dynamat, and insulation/loaded vinyl to reduce exhaust resonance and panel resonance. (don't mind the water from wiping down stuff!).

    Custom Sub enclosure for MK7 GTI Boot - worklog-404-jpg

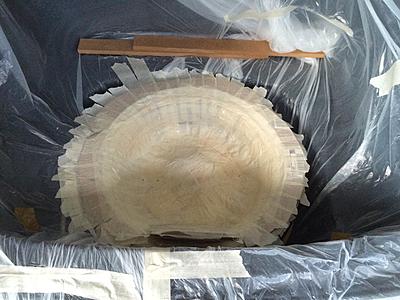

    3. Taped out inside of tyre and used hairspray as separator for the fiberglass (ended up doing it out of vehicle though so the lining was not required in the end). The plastic was to prevent fumes and spillage but once I had the MDF base produced with cutout I could just rest it on the tyre and fiberglass.

    This was my first project fibre-glassing but I do a lot of building with other composites so with a little practice I felt I could get it done. There are some professional Tafe videos online too that can be accessed through youtube . Most car audio DIY videos are terrible with techniques when compared with professional instruction ironically so beware what you watch I guess!

    Custom Sub enclosure for MK7 GTI Boot - worklog-397-jpg

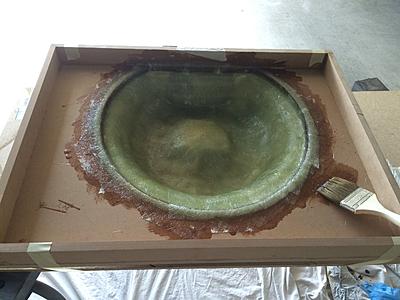

    Laying in the fibreglass and removing excess. I'm sure a pro would laugh his arse off at this but for my structural needs it is just fine
    Custom Sub enclosure for MK7 GTI Boot - worklog-399-jpg

    Custom Sub enclosure for MK7 GTI Boot - worklog-400-jpg

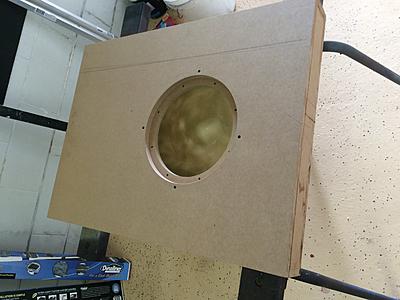

    Top plate installed with some small internal bracing and routed cutout for the sub (depth created with allowance for the full excursion of the cone and surround also includes the thickness of the MDF floor given the grill sits at the top of that..... space was at a premium).

    Custom Sub enclosure for MK7 GTI Boot - worklog-409-jpg

    The Sub used: IMAGE DYNAMICS IDQ10D2-V.4



    Installed enclosure. Note the MDF floor with some carpet strips to prevent vibration. The grill was a temp install and I have swapped it out with one providing far greater free air flow. The sub enclosure is the perfect height for the floor to rest on in the closed position with carpet in place.

    Note the darker colour. I used glass resin with a small amount of acetone to thin it and painted the entire enclosure to water-proof it. All joins were glued and screwed so I didn't need this as filler to make the enclosure airtight.


    Custom Sub enclosure for MK7 GTI Boot - worklog-416-jpg

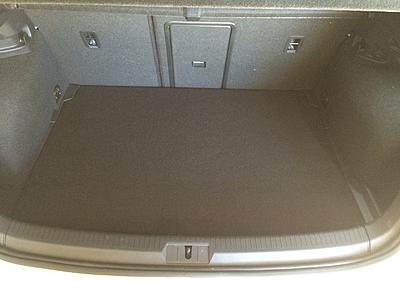

    This is the floor in place. Carpet was choking the sub more than I wanted so I have since done a cutout and have a different grill arrangement that sits over it.

    Custom Sub enclosure for MK7 GTI Boot - worklog-415-jpg

    Since completing the build I decided I needed some more space under the floor so I shortened the enclosure by cutting off one end (about 100mm on the Right side in the image above) and attached a new flat panel end - glued, screwed, routed to shape and painted with resin. Function over a polished finish at this point and it is still in the optimal range for enclosure volume so the sub is performing great .
